| select | Inquiry | Bearing Number | Dimensions | ||
|---|---|---|---|---|---|

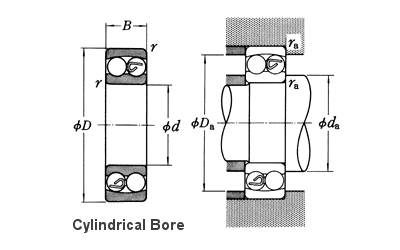

| d (mm) | D (mm) | B (mm) | |||
| 1200 | 10 | 30 | 9 | ||
| 1300 | 10 | 35 | 11 | ||
| 2300 | 10 | 35 | 17 | ||
| 2201 | 12 | 32 | 14 | ||
| 1201 | 12 | 32 | 10 | ||
| 1301 | 12 | 37 | 12 | ||
| 2301 | 12 | 37 | 17 | ||
| 1202 | 15 | 35 | 11 | ||
| 2202 | 15 | 35 | 14 | ||
| 1302 | 15 | 42 | 13 | ||
| 2302 | 15 | 42 | 17 | ||
| 1203 | 17 | 40 | 12 | ||
| 2203 | 17 | 40 | 16 | ||
| 1303 | 17 | 47 | 14 | ||
| 2303 | 17 | 47 | 19 | ||
| 1204 | 20 | 47 | 14 | ||
| 2204 | 20 | 47 | 18 | ||
| 1304 | 20 | 52 | 15 | ||
| 1205 | 25 | 52 | 15 | ||
| 2205 | 25 | 52 | 18 | ||
| 1305 | 25 | 62 | 17 | ||
| 2305 | 25 | 62 | 24 | ||
| 1206 | 30 | 62 | 16 | ||
| 2206 | 30 | 62 | 20 | ||
| 1306 | 30 | 72 | 19 | ||
| 2306 | 30 | 72 | 27 | ||
| 1207 | 35 | 72 | 17 | ||
| 2207 | 35 | 72 | 23 | ||
| 1307 | 35 | 80 | 21 | ||
| 2307 | 35 | 80 | 31 | ||
