英制陶瓷深沟球轴承-产品-Shandong Longhai Bearing

英制陶瓷深沟球轴承

实物图

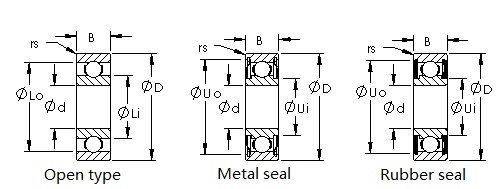

二维图
Boutique Bearing

英制陶瓷深沟球轴承

PDF

3D Drawing

联系人 :

电话 :

E-mail :

备注 :

验证码:

click to change

选择	询价	轴承型号	尺寸
选择	询价	轴承型号	d (mm)	D (mm)	B (mm)
		R22 ZZ & 2RS	34.925	63.5	14.288
		1658 ZZ & 2RS	33.338	65.088	17.463
		R24 ZZ & 2RS	31.8	66.675	11.113
		1657 ZZ & 2RS	31.75	65.088	17.463
		1654 ZZ & 2RS	31.75	63.5	15.875
		R20 ZZ & 2RS	31.75	57.15	12.7
		1652 ZZ & 2RS	28.575	63.5	15.875
		R18 ZZ & 2RS	28.575	53.975	12.7
		R16 ZZ & 2RS	25.4	50.8	12.7
		1641 ZZ & 2RS	25.4	50.8	14.288
		1640 ZZ & 2RS	22.225	50.8	14.288
		R14 ZZ & 2RS	22.225	47.625	12.7
		1638 ZZ & 2RS	19.05	50.8	14.288
		1635 ZZ & 2RS	19.05	44.45	12.7
		R12 ZZ & 2RS	19.05	41.275	11.113
		1630 ZZ & 2RS	15.875	44.45	12.7
		1633 ZZ & 2RS	15.875	44.45	12.7
		1628 ZZ & 2RS	15.875	41.275	12.7
		R10 ZZ & 2RS	15.875	34.925	8.733
		1623 ZZ & 2RS	15.875	34.925	11.113
		R1458 ZZ & 2RS	15.875	22.225	3.967
		1622 ZZ & 2RS	14.288	34.925	11.113
		1621 ZZ & 2RS	12.7	34.925	11.113
		R8 ZZ & 2RS	12.7	28.575	7.938
		1616 ZZ & 2RS	12.7	28.575	9.525
		1620 ZZ & 2RS	11.113	34.925	11.113
		1615 ZZ & 2RS	11.113	28.575	9.525
		1607 ZZ & 2RS	11.113	23.017	7.938
		1614 ZZ & 2RS	9.525	28.575	9.525
		1606 ZZ & 2RS	9.525	23.017	7.938
