深沟球轴承是最常见的滚动轴承类型。深沟球轴承由外圈、内圈、一组钢球和保持架组成。深沟球轴承有两种类型：单列和双列。深沟球结构也分为密封和开式两种。开式是指不带密封结构的轴承。
我们可根据客户对轴承的需求定制各种尺寸。如有需要，请给我发送电子邮件。

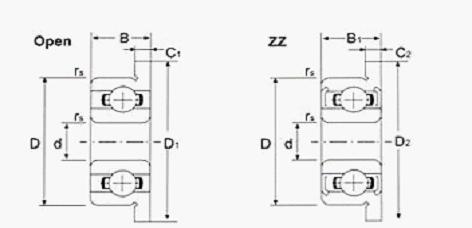

| 选择 | 询价 | 型号 | 尺寸（mm） | 基本额定载荷(kN) | |||||
|---|---|---|---|---|---|---|---|---|---|
| d | D | B | Df | Bf | 额定动载荷(Cr) | 额定静载荷(Cor) | |||
| F627zz | 7 | 22 | 7 | 25 | 1.5 | 2794 | 1103 | ||
| F627 | 7 | 22 | 7 | 25 | 1.5 | 2794 | 1103 | ||
| F627 2RS | 7 | 22 | 7 | 25 | 1.5 | 2794 | 1103 | ||
| F607zz | 7 | 19 | 6 | 22 | 1.5 | 1986 | 717 | ||
| F607 2RS | 7 | 19 | 6 | 22 | 1.5 | 1986 | 717 | ||
| F607 | 7 | 19 | 6 | 22 | 1.5 | 1986 | 717 | ||
| F697zz | 7 | 17 | 5 | 19 | 1.2 | 1364 | 575 | ||
| F697 2RS | 7 | 17 | 5 | 19 | 1.2 | 1364 | 575 | ||
| F697 | 7 | 17 | 5 | 19 | 1.2 | 1364 | 575 | ||
| F687zz | 7 | 14 | 5 | 16 | 1.1 | 997 | 410 | ||
| F687 2RS | 7 | 14 | 5 | 16 | 1.1 | 997 | 410 | ||
| F687 | 7 | 14 | 3.5 | 16 | 1 | 997 | 410 | ||
| MF137zz | 7 | 13 | 4 | 14.6 | 0.8 | 460 | 221 | ||
| MF137 2RS | 7 | 13 | 4 | 14.6 | 0.8 | 460 | 221 | ||
| MF137 | 7 | 13 | 3 | 14.2 | 0.6 | 460 | 221 | ||
| MF117zz | 7 | 11 | 3 | 12.2 | 0.6 | 387 | 162 | ||
| MF117 2RS | 7 | 11 | 3 | 12.2 | 0.6 | 387 | 162 | ||
| MF117 | 7 | 11 | 2.5 | 12.2 | 0.6 | 387 | 162 | ||
| F626zz | 6 | 19 | 6 | 22 | 1.5 | 1986 | 717 | ||
| F626 2RS | 6 | 19 | 6 | 22 | 1.5 | 1986 | 717 | ||
| F626 | 6 | 19 | 6 | 22 | 1.5 | 1986 | 717 | ||
| F606zz | 6 | 17 | 6 | 19 | 1.2 | 1924 | 677 | ||
| F606 2RS | 6 | 17 | 6 | 19 | 1.2 | 1924 | 677 | ||
| F606 | 6 | 17 | 6 | 19 | 1.2 | 1924 | 677 | ||
| F696zz | 6 | 15 | 5 | 17 | 1.2 | 1139 | 418 | ||
| F696 2RS | 6 | 15 | 5 | 17 | 1.2 | 1139 | 418 | ||
| F696 | 6 | 15 | 5 | 17 | 1.2 | 1139 | 418 | ||
| F686zz | 6 | 13 | 5 | 15 | 1.1 | 920 | 354 | ||
| F686 2RS | 6 | 13 | 5 | 15 | 1.1 | 920 | 354 | ||
| F686 | 6 | 13 | 3.5 | 15 | 1 | 920 | 354 | ||
