| 选择 | 询价 | 轴承型号 | 尺寸 | 最小倒角尺寸(min) | 额定载荷 | 限制速度 (X1000 RPM) | 钢球 | 重量(Kg) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

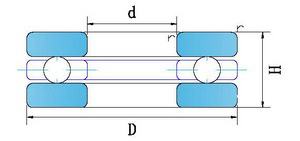

| d | D | d1 | D1 | H | (rs) | 额定动载荷(N) | 额定静载荷(N) | 油脂 | 油 | 型号 | 直径 | ||||
| F2-6 | 2mm | 6mm | 3mm | 6mm | 2mm | 0.1 | 117 | 83 | 16 | 13 | 6 | 1 | 0.6 | ||
| F2x-7 | 2.5mm | 7mm | 3.5mm | 7mm | 2.5mm | 0.1 | 156 | 117 | 15 | 12 | 6 | 1.2 | 0.9 | ||
| F3-8 | 3mm | 8mm | 3.5mm | 7.8mm | 3.2mm | 0.1 | 600 | 480 | 11 | 15 | 6 | 1.588 | 0.6 | ||
| F4-9 | 4mm | 9mm | 4mm | 8.8mm | 4.2mm | 0.15 | 800 | 520 | 8 | 12 | 6 | 1.588 | 1.5 | ||
| F4-10 | 4mm | 10mm | 4mm | 9.8mm | 4.2mm | 0.15 | 658 | 580 | 6 | 10 | 6 | 1.588 | 2 | ||
| F5-11 | 5mm | 11mm | 4.5mm | 10.8mm | 5.2mm | 0.15 | 988 | 880 | 5 | 8 | 7 | 1.588 | 2.4 | ||
| F6-12 | 6mm | 12mm | 4.5mm | 11.8mm | 6.2mm | 0.15 | 1600 | 1255 | 5 | 7 | 8 | 2 | 2.5 | ||
| F7-15 | 7mm | 15mm | 5mm | 14.8mm | 7.2mm | 0.2 | 2200 | 2000 | 3.6 | 7.1 | 8 | 2.5 | 4.4 | ||
| F8-16 | 8mm | 16mm | 5mm | 15.8mm | 8.2mm | 0.2 | 2500 | 3000 | 4 | 8 | 9 | 3 | 5 | ||
| F10-18 | 10mm | 18mm | 5.5mm | 17.8mm | 10.2mm | 0.2 | 2230 | 2721 | 2.5 | 4.5 | 10 | 2.381 | 6 | ||
